PCB control board for variable vending machine systems:

WF-100-L Interface For vending machine

WF-100 operates with 24 VAC power, the Coinstar coin validator is provided with a power board which derives 12 VDC from the 24 VAC to power the mechanism. In addition to it has the interface to provide coin and token information to the wash system.

And has the LED to show the coin numbers or the Time left.

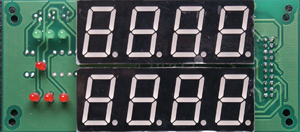

WF-300 Interface For vending machine

WF-300 is the LED interface,can connect to the coinstar coin acceptor to show the coin number or the time left.

WF-200 Control Board For vending machine

WF-200 is a series of the coin control board. can be used widely.These control board can setup up the coin numbers and the delay time through the DIP Switch.

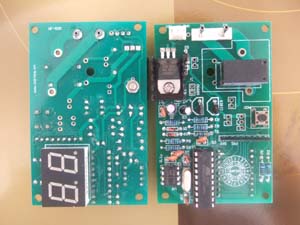

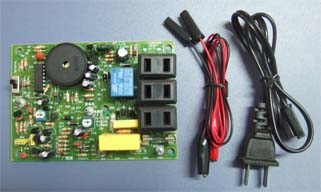

WF-500 Control Board for Power Supply with LED Display

1.Controls electrical devices ( TV, Massage chair..) power
2.500Watt electrical relay capacity (option for larger relay with bigger power)
3.Suitable for public place location
4.Options: Single-coin/Multi-coin validator>
5.Digital timer: rate adjustable by ownerthrough the simple push button switch;

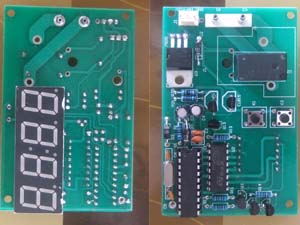

WF-500B Control Board for Power Supply with Timer Display

1.Controls electrical devices ( TV, Massage chair..) power
2.500Watt electrical relay capacity (option for larger relay with bigger power)
3.Suitable for public place location
4.Options: Single-coin/Multi-coin validator
5.Digital timer: rate adjustable by owner through two simple push button switch;

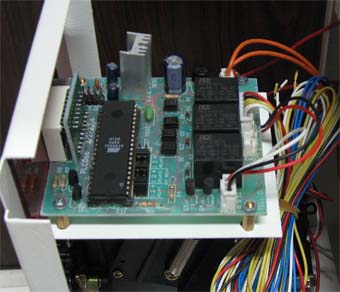

WF-600 Control Board for Washing Machine with LED Display

Controls washing machine
Enable pay-per-use
Suitable for public place location
Options: Single-coin/Multi-coin validator
Digital timer: rate adjustable by ownerthrough the simple switch;

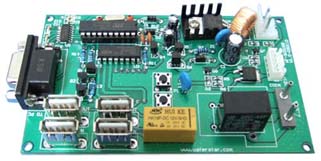

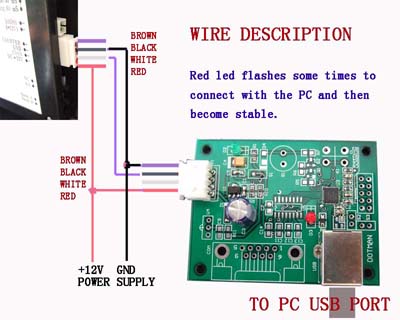

WF-400 USB Type Coin Control Board for Internet Cafe and Internet Kiosk

USB type coin control board is used to working together with the PC driver and then turn any PC into coin operated computer.When a coin inserted,it enables the system to function,when time is up,it will disable the function or shut off the computer.

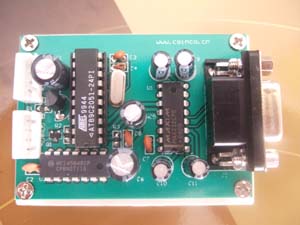

WF-700 PC-Adapter

PC Adapter is used to connect the Coin acceptor to PC.that can be connected with any pulse output type Coin acceptor and translate the pulse output signal to RS-232 or TTL serial type signal.

WF-700B PC-RS232 Interface

The WF-700B is an RS232 interface module for most models of coin acceptor products. The WF-700B has a built-in true RS232 port on its uplink communication port to interface with the serial port on a PC and a downlink port with inhibit line to interface with validators.
