WF Single Type Electronic Coin Acceptor (Teaching Type)

A CPU Single Coin acceptor with three special functions: Automatic alarm, coin drop steady and prevent coin embezzle.It is designed in anti-string style with high detecting ability.

With the Teaching button,then you can setup your coin paramaters easily.

Specifications/Features:

  • Rating voltage: DC+12V with 20% discrepancy
  • Size per unit: W143 x D64 x H124(mm)
  • Net weight: 0.38kgs
  • Temperate: -20'C ~ +75'C
  • Accepted coin diameter: 18mm-32mm
  • Accepted coin thickness: 1.2mm-3.0mm
  • Selected Normal ,Slack,Loose For Sensitivity of Coin Acceptance
  • Lines guide of 5 lines with 4 pins connector
  • Setting Button ,easy to setup the coin parameters

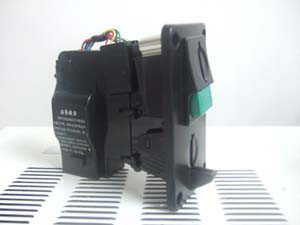

Front Panel with Reject Button

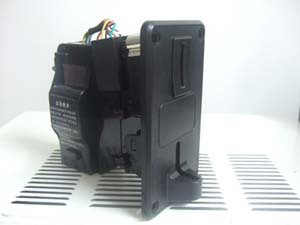

Front Panel without Reject Button
