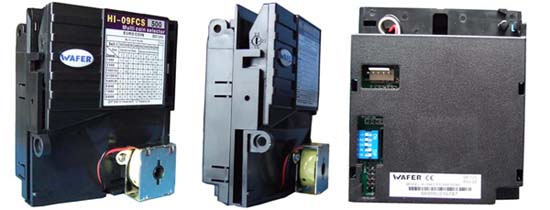

HI-09FCS Multi-Coin Coin acceptor

HI-09 Multi-Coin Coin Acceptor

1. Accept 8 kinds of coins at the same time.
2. Self-programming without PC.
3. With an Inhibit line for main machine
4. With 6 Channel. Parallel output for each channel(Coin) control.
5. Support one coin then multi pulse output
6. Ajustable 4 kinds of coin thickness

7. HI-09 can also be used for top insert project





Model: HI-09 Coin acceptor

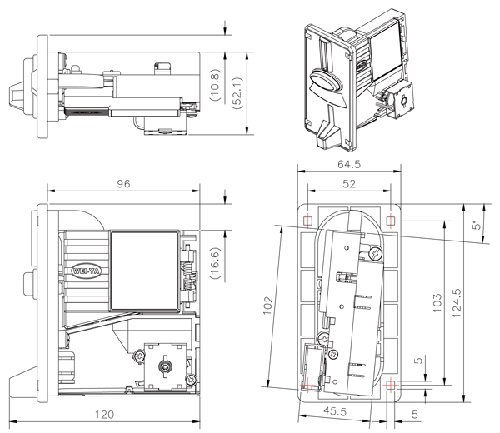

HI-09FCS coin acceptor dimension :
